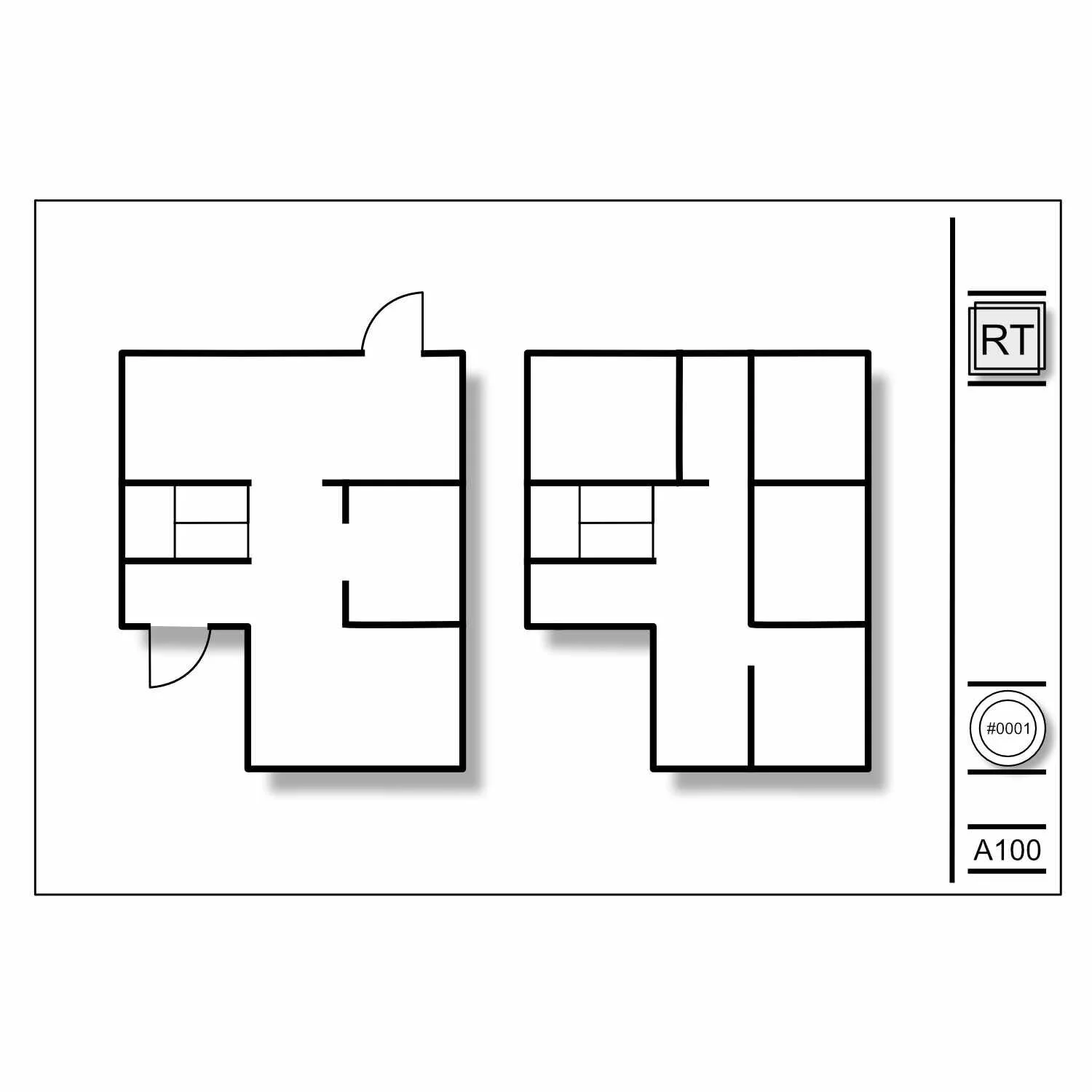

Revit Title Block family diagram
Revit family title block revision schedule digital stamp and scale

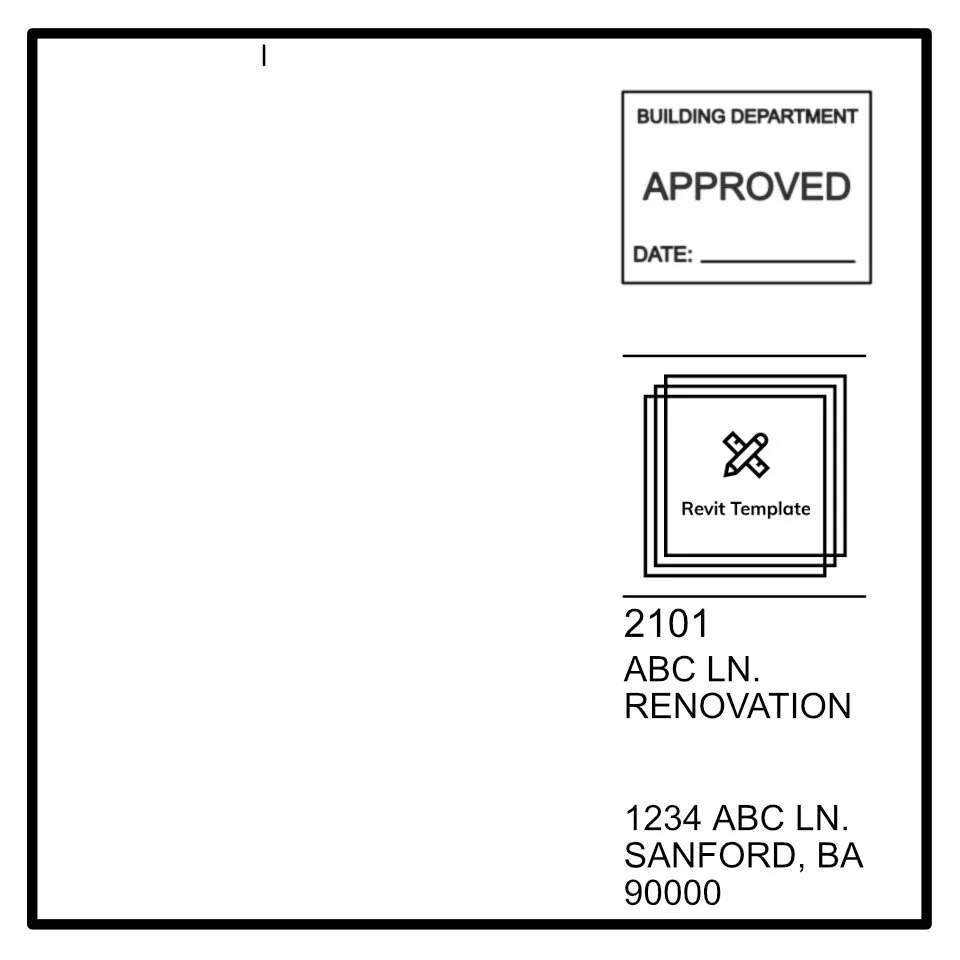

Revit title block family stamp firm name project number
Revit family title block file path location and grid type
Revit Title Block family diagram
Revit family title block revision schedule digital stamp and scale
Revit title block family stamp firm name project number
Revit family title block file path location and grid type

Modern Title Block Collection

$149.00

Looking to freshen up your project standard title block? Still using a CAD title block from 1997 that you need to manually update? Our collection is a simplified modern design that will certainly make your drawings pop on-site. We take advantage of Revit automated workflows, so the only things you need to update are the sheet names and numbers. Revit 2022 and up.

Features →

Looking to freshen up your project standard title block? Still using a CAD title block from 1997 that you need to manually update? Our collection is a simplified modern design that will certainly make your drawings pop on-site. We take advantage of Revit automated workflows, so the only things you need to update are the sheet names and numbers. Revit 2022 and up.

Features →



Time-Saving Title Block Features:

  • Popular sheet sizes already generated: ARCH A, B, C, D, E1, E & ANSI A, B, C, D, E.

  • Clear dedicated space for both the professional of record and municipal approval stamps.

  • Gridded sheets for faster identification and communication, especially when you have sheets with several details.

  • Toggle on/off grid alignment system, ensuring your floor plans all align when scrolling through a PDF.

  • Integrated smart labels that auto-populate project information. Stop manually changing title blocks for every project!

  • Automatically updated revision schedule with every placed revision bubble.

  • Auto-populated drawing scale based on imported drawings.

  • Revit file name/location information along the edge of drawings for when you can’t remember which file those specific drawings on-site are from.

As a bonus, we include:

  • Welcome screen title block to keep your entire team up to date on all project-related information, such as major file modifications or significant revision dates.

  • Metric sheet sizes: ISO A0, A1, A2, A3, A4 for projects near and far!
