Features

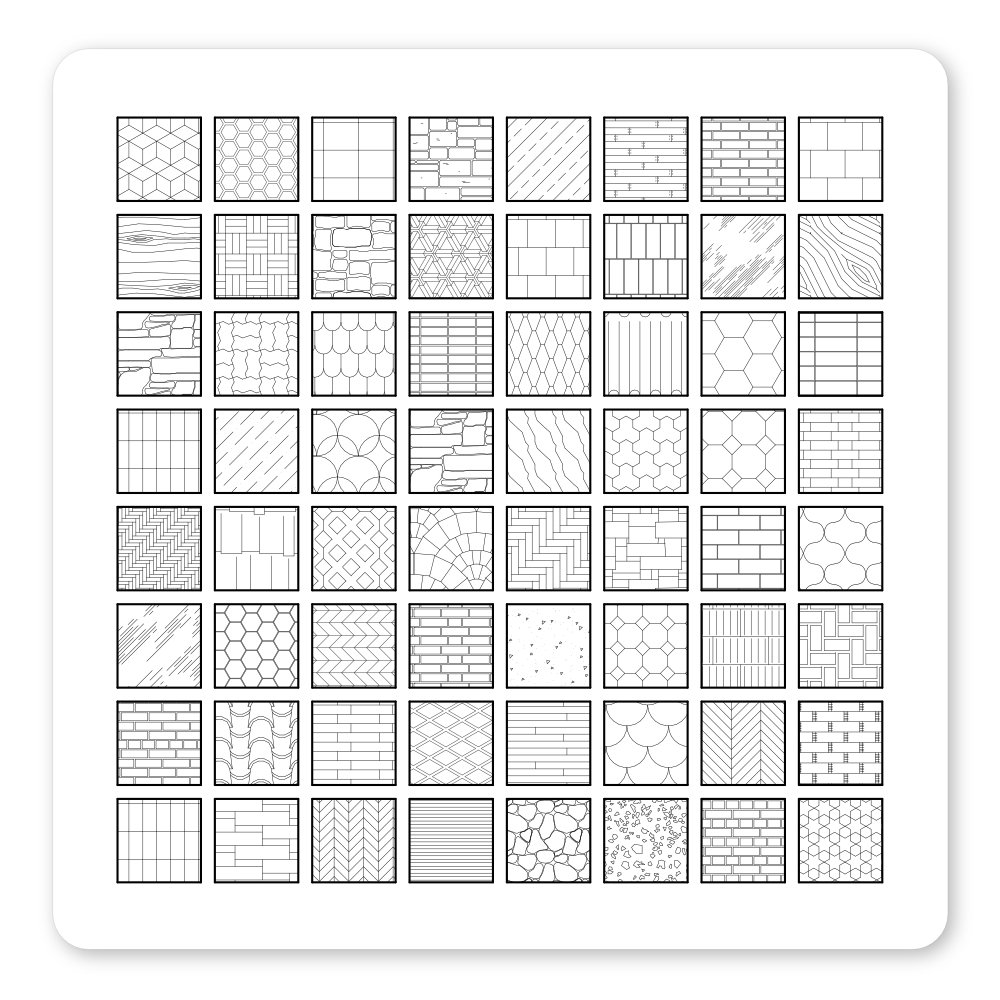

Massive Hatch Pattern Collection
Over 700 individual fill patterns already set up. Including brick, CMU, stone, tile, flooring, roofing, graphic cut hatching, and much more! Patterns are divided into either drafting or model patterns for easy identification.
Easy to Use
Hatches are set up with drafting or model hatch patterns for easy organization and identification. Import patterns into any ongoing project with just two buttons! Compatible with Revit 2022 and up.
Free Bonus Content
Comes with easy step-by-step instructions for how to transfer patterns to your latest project.
Includes tile-generating file to match any additional size requirements.
